| 技术数据-UL/CUL | |||
| 等级 Use Group | B | C | D |
| 额定电压 Rate Voltage | 600V | - | 600V |
| 额定电流 Rated Current | 115A | - | 5A |
| 接线范围 Wire Range | 20~2AWG | ||
| 耐电压 Dielectric Voltage-Withstand | 2.2KV | ||
| 技术参数-IEC | |||
| 过电压类别 Overvoltage Category | III | III | II |
| 污染等级 Contamination Class | 3 | 2 | 2 |
| 额定电压 Rated Voltage | 1000V | 1000V | 1000V |
| 额定电流 Rated Current | 125A | 125A | 125A |
| 额定冲击电压 Impulse withstand voltage | 8.0KV | 8.0KV | 8.0KV |
| 导线截面积[硬/柔] Conductor cross section | 0.5~35mm² | ||
| 材料 Material | |||
| 绝缘材料 Insulation Material | PA66 | ||
| 阻燃等级 Flame relardant rating | UL94V-0 | ||
| 导体材料 Conductor Material | Copper alloy | ||
| 导体表面镀层 Plating of conductor surface | Sn plated | ||
| 一般参数 Other Data | |||
| 间距 Pitch | 15mm | ||
| 极数 Poles | 2P~24P | ||
| 剥线长度 Stripping Length | 17~18mm | ||
| 螺丝 Screw | M5 | ||
| 扭矩 Torque | 2.0N.m | ||
| 工作温度 Operating temperature | -40~+105℃ | ||
| 焊锡温度 Soldering temperature | 260℃/5S | ||
| 引针尺寸 Pin dimensions | 1.2X1.2 | ||

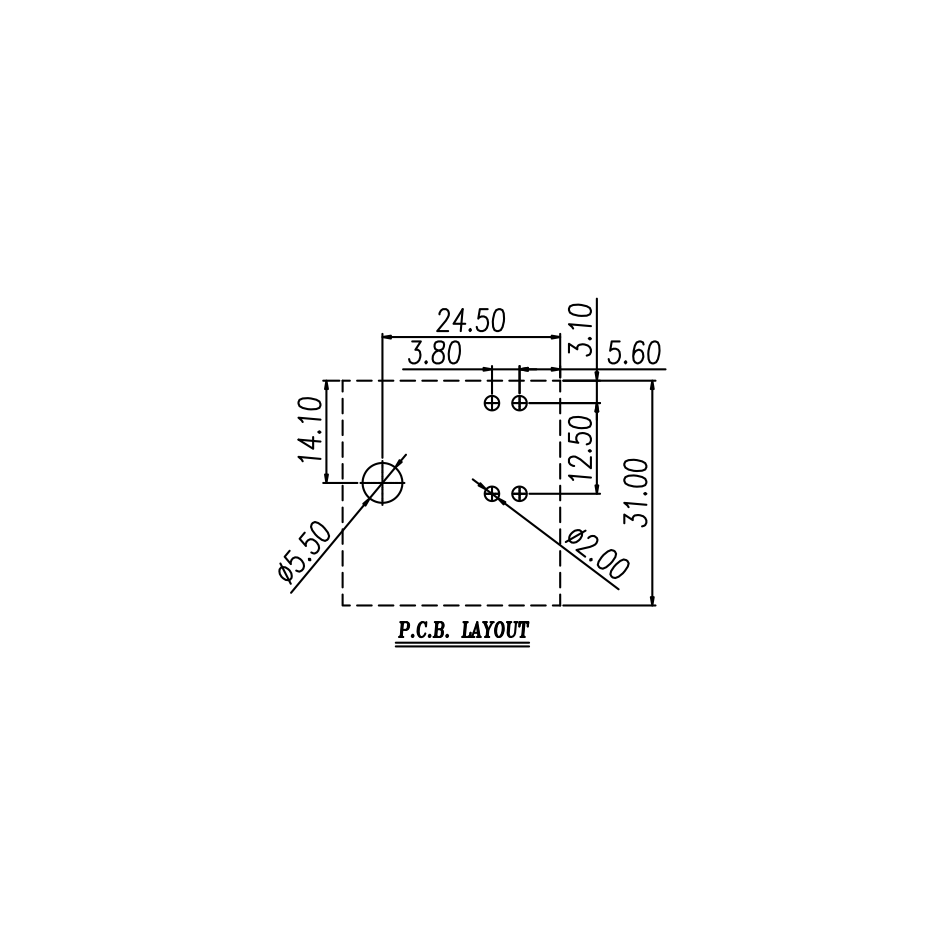

| PCB板孔径 PCB Hole Diameter | Ø2.0 | ||
| 商业数据 | |||
| 产品型号 | NB118ML-15-XXP | ||
| 产品编号 | - | ||
| 包装方式 | 内袋 | 内盒 | 外箱 |
