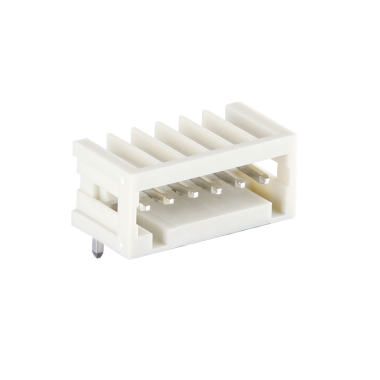

NB0102-02XX

MCS多用途连接器

接线端子-插座

额定电流: 4 A

额定电压: 150 V

间距: 2.5 mm

极数: 2P~24P

下载PDF 联系我们

技术数据-UL/CUL
等级 Use Group	B	C	D
额定电压 Rate Voltage	150V	-	150V
额定电流 Rated Current	4A	-	4A
接线范围 Wire Range	-
耐电压 Dielectric Voltage-Withstand	1.3KV
技术参数-IEC
过电压类别 Overvoltage Category	III	III	II
污染等级 Contamination Class	3	2	2
额定电压 Rated Voltage	80V	160V	320V
额定电流 Rated Current	6A	6A	6A
额定冲击电压 Impulse withstand voltage	2.5KV	2.5KV	2.5KV
导线截面积[硬/柔] Conductor cross section	/
材料 Material
绝缘材料 Insulation Material	PA66
阻燃等级 Flame relardant rating	UL94V-0
导体材料 Conductor Material	Copper alloy
导体表面镀层 Plating of conductor surface	Sn plated
一般参数 Other Data

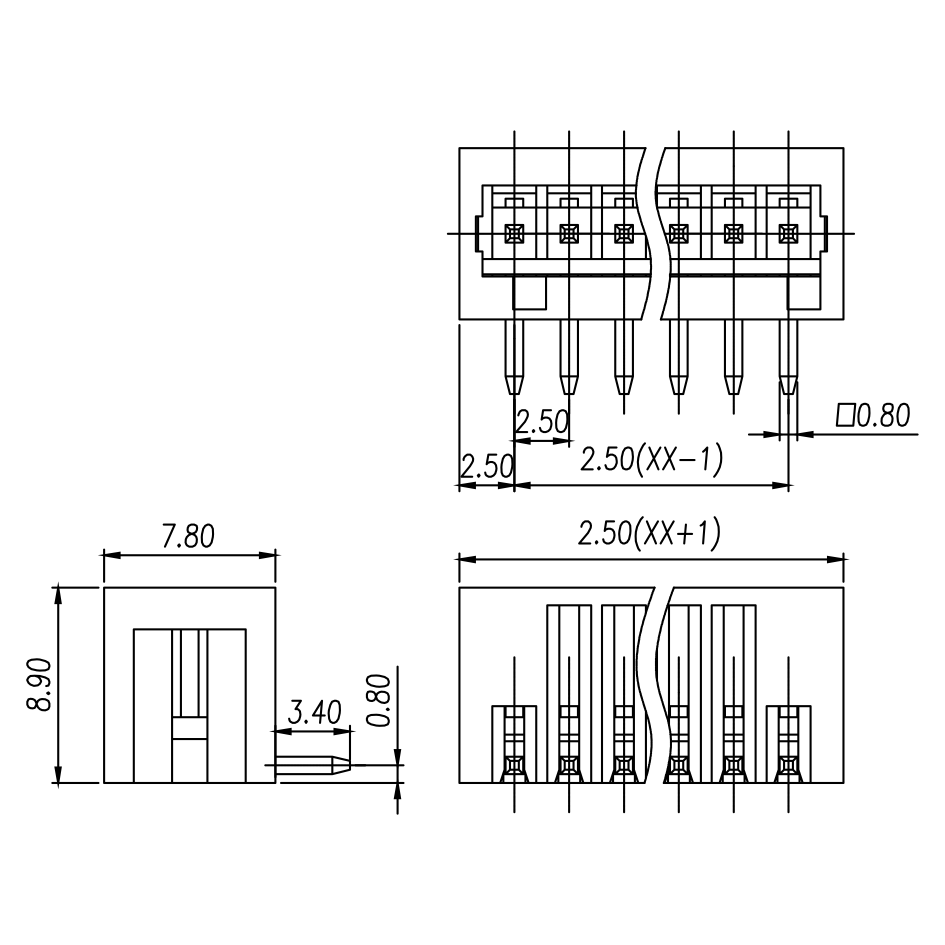

间距 Pitch	2.5 mm
极数 Poles	2P~24P
剥线长度 Stripping Length	/
螺丝 Screw	/
扭矩 Torque	/
工作温度 Operating temperature	-40~+105℃
焊锡温度 Soldering temperature	260℃/5S
引针尺寸 Pin dimensions	0.8*0.8mm

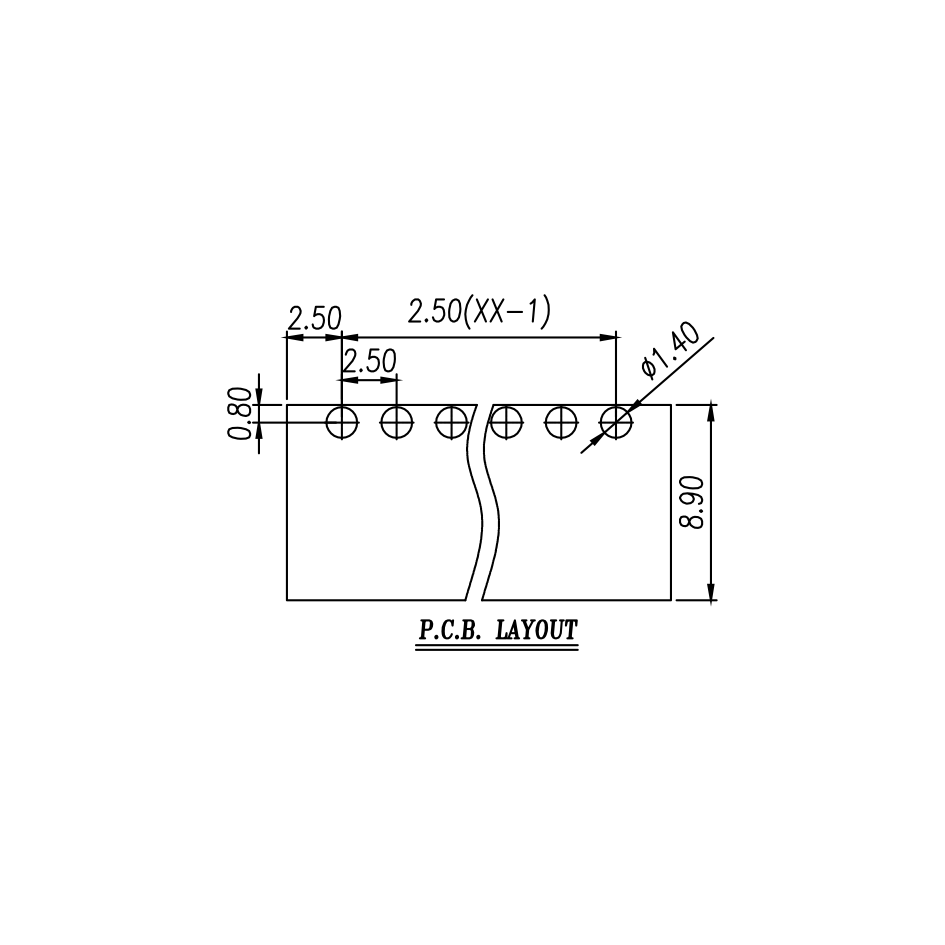

PCB板孔径 PCB Hole Diameter	Ø1.4mm
