| 材质及电镀 Material | ||
| 螺丝 Screws | M3.0 Steel Ni plated | |
| 焊脚 Pin Header | Copper alloy，Sn plated | |
| 塑件 Housing | PA66，UL94V-0 | |
| 电气性能 Electrical | ||
| 参考标准 Standard | UL | IEC |
| 额定电压 Rated voltage | 150V | 250V |
| 额定电流 Rated current | 30A | 32A |
| 使用线径 Wire range | 22~10AWG | 6mm² |
| 接触电阻 Contact Resistance | 20mΩ | |
| 绝缘电阻 Insulation resistance | 500MΩ/DC500V | |
| 耐电压 Withstanding voltage | AC2000V/1Min | |
| 一般参数 Other Data | ||

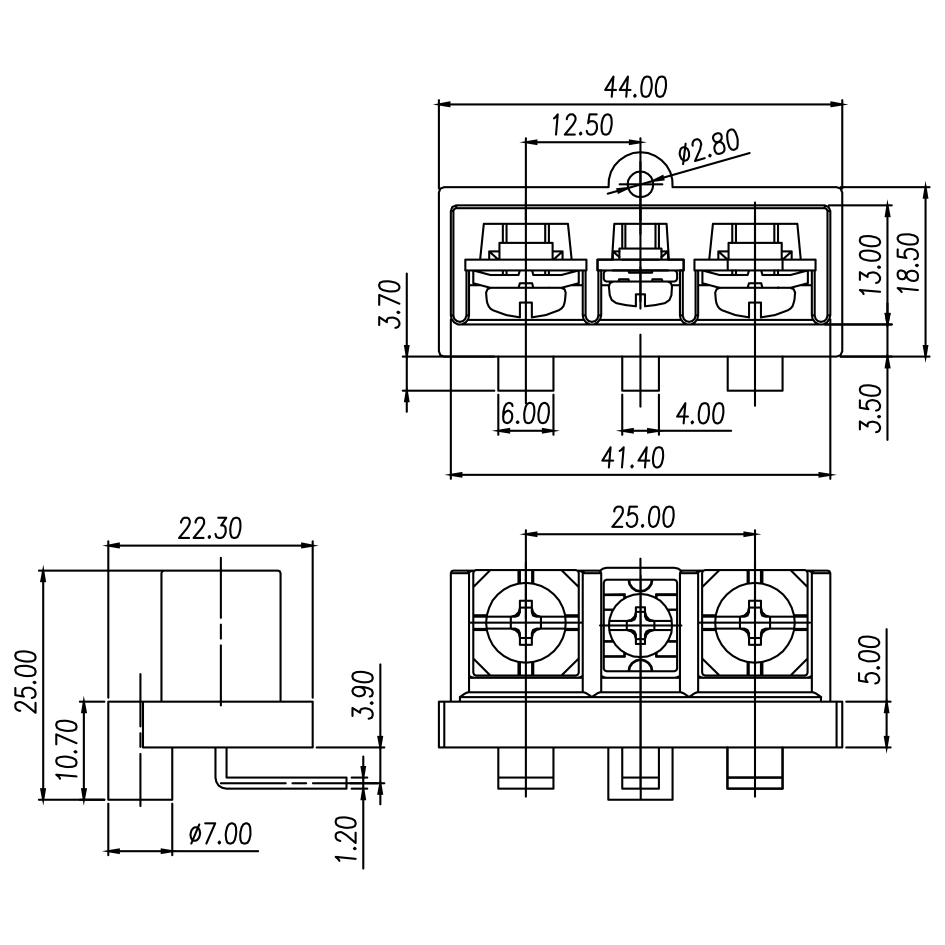

| 间距 Pitch | 12.5mm | |
| 极数 Poles | 3P | |
| 工作温度 Operating temperature | -40℃~+105℃ | |
| 扭矩 Torque | 12.24kgf.cm/1.2Nm/10.6Lb.in | |
| 商业数据 | |||

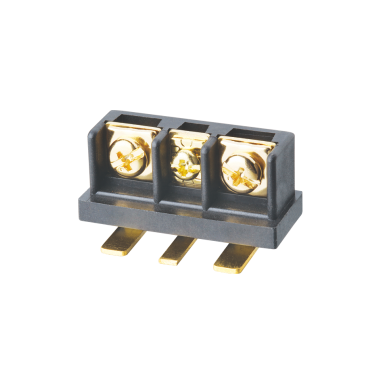

| 产品型号 | NBEM-5-12.5-XXP | ||
| 产品编号 | - | ||
| 包装方式 | 内袋 | 内盒 | 外箱 |
